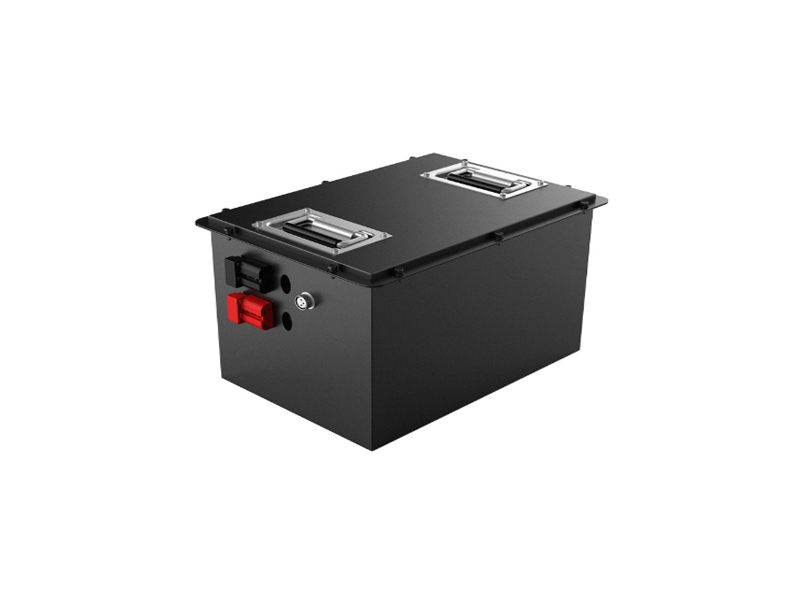

High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah

  • High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah
Plaats van herkomst CHINA
Merknaam JHOTA
Min. bestelaantal 5
Prijs Bespreekbaar
Verpakking Details Karton
Levertijd 20-30 dagen
Betalingscondities T/t
Levering vermogen 500 stcs

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Productnaam AGV voertuigbatterij Nominale spanning 48V
Nominale capaciteit 120Ah Cycle Life 2000 keer
Garantie 5 jaar
Markeren

48V LiFePo4 battery for AGV

,

120Ah AGV lithium battery

,

High-capacity EV lithium battery
Laat een bericht achter
Productomschrijving
Specification
Item Parameter
Nominal Voltage 48V
Rated Capacity Nominal Capacity: 120Ah
Charging Voltage 54.8V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 34.5V
Rated Charging Current ≤50A
Maximum Continuous Charging Current ≤80A
Internal Resistance <100mΩ
Rated Discharge Current ≤80A
Maximum Continuous Discharge Current ≤120A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥360A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 36kg
Dimensions Customizable



Product Description:
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah 2

Our Factory
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah 3

Packing&Shipping
High-Capacity LiFePo4 Battery for AGV Vehicles Extended Runtime 48V 120Ah 4
