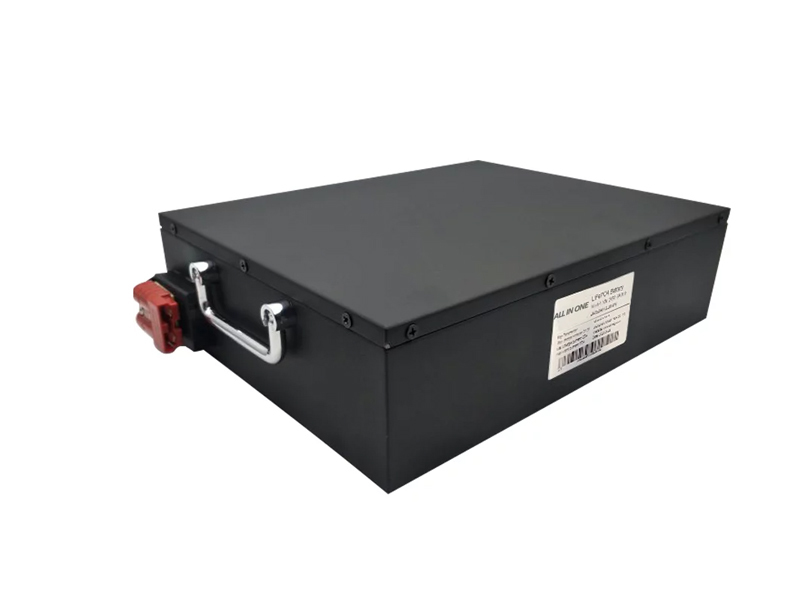

72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | JHOTA |
| Min. bestelaantal | 5 |
| Prijs | Bespreekbaar |
| Verpakking Details | Karton |
| Levertijd | 20-30 dagen |
| Betalingscondities | T/t |
| Levering vermogen | 500 stcs |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Productnaam | Communicatie Basisstationbatterij | Nominale spanning | 72V |
|---|---|---|---|
| Nominale capaciteit | met een vermogen van niet meer dan 50 kW | Cycle Life | 2000 keer |
| Garantie | 5 jaar | ||
| Markeren | 72v 45ah LiFePo4 battery for AGVs,electric vehicle lithium battery with warranty,AGV battery for heavy loads |
||
Productomschrijving
72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads
Specification
| Item | Parameter |
|---|---|
| Nominal Voltage | 73.6V |
| Rated Capacity | Nominal Capacity: 45Ah,Minimum Capacity: 44Ah |
| Charging Voltage | 29.2V |
| Charging Method | Constant Current / Constant Voltage |
| Discharge Cut-off Voltage | 18.4V |
| Rated Charging Current | ≤20A |
| Maximum Continuous Charging Current | ≤50A |
| Internal Resistance | <100mΩ |
| Rated Discharge Current | ≤20A |
| Maximum Continuous Discharge Current | ≤50A (not exceeding 1 hour) |
| Overcharge Protection Voltage | 3.65±0.05V (adjustable) |
| Over-discharge Protection Voltage | 2.3±0.01V (adjustable) |
| Overcurrent Protection | Discharge overcurrent value: ≥150A |
| Short Circuit Protection |
Condition: External circuit short, Recovery: Disconnect short circuit |
| Operating Temperature Range | Charge: 0~55°C, Discharge: -20~55°C |
| Storage Temperature Range | Less than 7 days: 20~65°C |
| Weight | Approx. 23kg |
| Dimensions | Customizable |
Product Description:
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
Application:
1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy
for continuous movement and lifting.
2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).
3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with
minimal charging downtime.
